I. product overview:

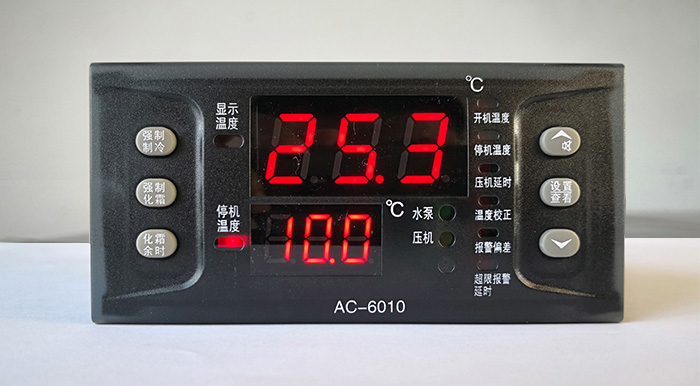

The super large screen displays, the touch key directly enters to check and set the parameters, and multiple indicator lights show the system operation status. The end user can operate various functions without the instruction manual, which has the keyboard lock function and functions such as refrigeration and frost. It is suitable for accurate control of the temperature of the cold storage.

Ii. Main functions

Keyboard lock; Temperature measurement, display and control; Temperature correction; Control output of refrigeration and defrost; Frost is controlled by time and temperature. Two sensors; Temperature over limit, over range and sensor fault alarm.

3. Technical parameters:

Measurement and control temperature range: being - 50 ℃ ~ 85 ℃

A display resolution being: 0.1 ℃

Temperature measuring accuracy: being is + / - 1 ℃

Operating voltage: 220VAC + / - 10% 50HZ/60HZ

Relay output capacity: compressor: 10A/220VAC; Frost: 10 a / 220 vac

A sensor types: being the NTC (10 k Ω / 25 ℃, B value 3435 k)

A working environment temperature being: 0 ℃ ~ 60 ℃

Humidity in working environment: 20%~85% (no condensation)

Iv. Specifications and dimensions:

Unit size: 116 length * 52 width * 72 depth (unit: mm)

Size of mounting hole: 92 long x 44 wide (unit: mm)

Front panel size: 116 length x 52 width (unit: mm)

Length of stay sensor line: 2M (including probe length)
